Zigzag blanking line - Stagger blanking Line
this kind of feeder is mainly used for wafer and square metal blanking production, because it has high efficiency and high material utilisation rate etc. advantage, the zigzag feeder is now more and more chased by customers.
The Six Advantage of a Zigzag Production Line:
1、In order to save the cutting process, it can do the zigzag pressing directly in the steel plate, which can increase the working efficient, save the material and reduce the material cost.
2、The zigzag feeder with the automatic repply movement control device, which can cooperate the move of the mold and realize the receiving material. It is no matter can reduce the working efficient and increase the production rate, but also can reduce the safety hazards and operational errors of human loading operation.
3、The feeder machine can be remove conveniently, the user can remove it and install other large mold, disassemble and other machine mold testng, which can greatly save the time and increase the efficient.
4、It is using high accuracy linear moving rail and limit-device position, which can ensure the accuracy position between the feeder machie and pressing machine.
5、The advance technology solve the contradiction between the position of large NC feeder and mold lifting installation and disassemble work.
6、For the basical make sure the large mold installation, disassemble, the safe of operator.
We expertise in manufacturing a range of AUTO-BLANKING LINE for producing different shapes like circle, rectangle, square etc. We use advance technology in designing & developing highly productive machinery. We aim at giving maximum output with minimum scrap with minimum efforts. Our machinery is safe and stable. The line is available in different sizes.
We can customize the line as per our customers requirement.
We export our machinery to different region of the world.
1. The slanting type stamping of the steel strip can be directly performed, thereby reducing the cutting process of the steel strip which is pre-cut into a slender strip, improving the production efficiency, reducing the corner scrap and reducing the waste of raw materials.
2. The reciprocating movement control device is arranged so that the receiving hopper can cooperate with the action of the upper punch of the stamping die, thereby realizing automatic reciprocating feeding. Therefore, not only the manual unloading operation process is reduced, the labor intensity also reduced, and the production efficiency is improved. It can then reduce the safety hazards and operational error events that may result from manual unloading operations.
3. A pallet is arranged between the decoiler and the leveling machine, and a pallet is also arranged between the leveling machine and the zig zag servo feeder. And there are many balls and detection probes on the pallet. The detection probe can effectively control and detect the speed of the material entering, thereby adjusting the speed of the decoiler unwinding and the speed of the leveling machine correction, so that the speed of the material forward transportation can be appropriately adjusted to the feeding action of the zig zag servo feeder, with high automation and time saving.
Composition:

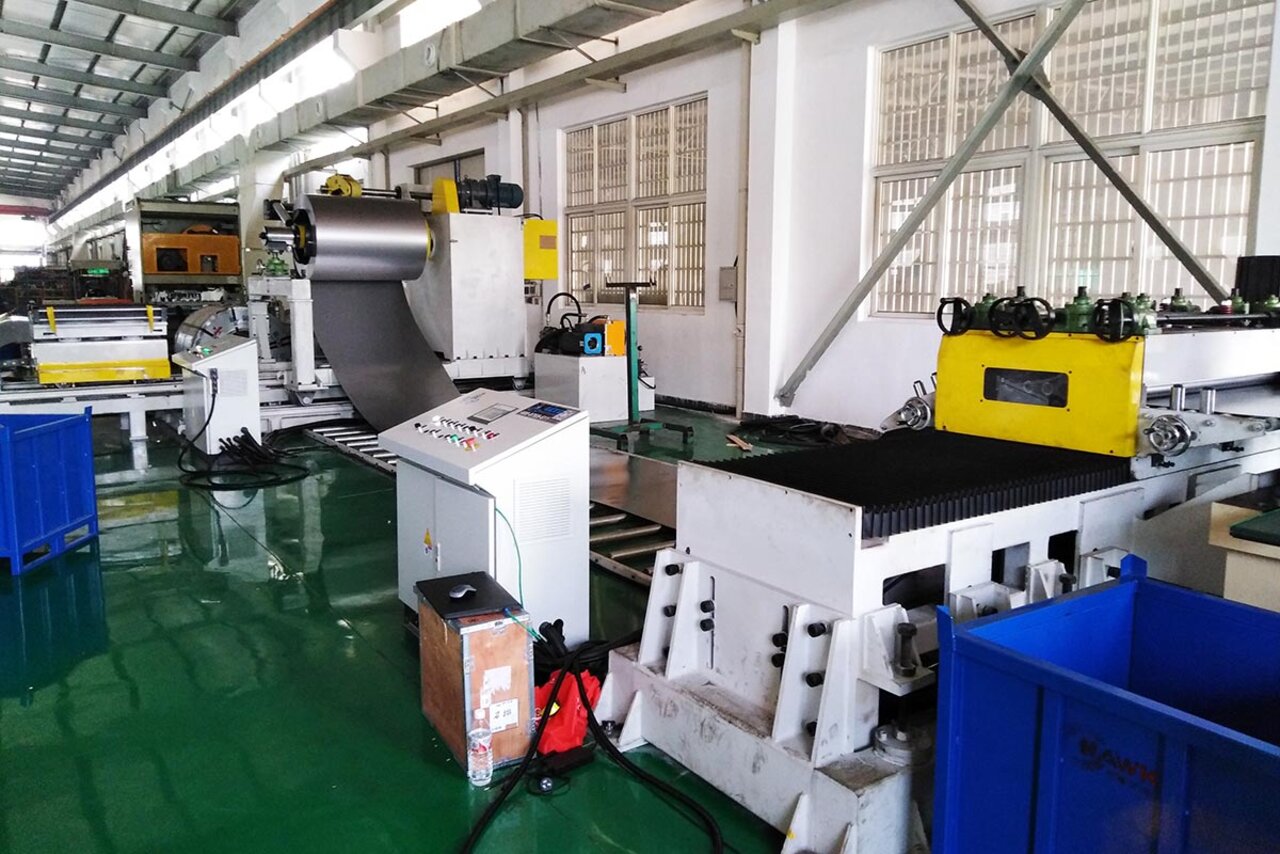

Feeding Trolley, Hydraulic decoiler, Precison Sheet Leveling Machine, Coil Pit Transition Bridge, Side Guide Width Adjusting Device, Left Shift Feeding Machine, High Performance Deep Strength Press(Customer Optional), Finished Product Conveyor Belt, Wafer Automatic Stacking Device(Customer Optional), Mechanical Shears/Scrap The Conveyor Belt(Customer Optional)
About High Speed Servo Zigzag Feeder

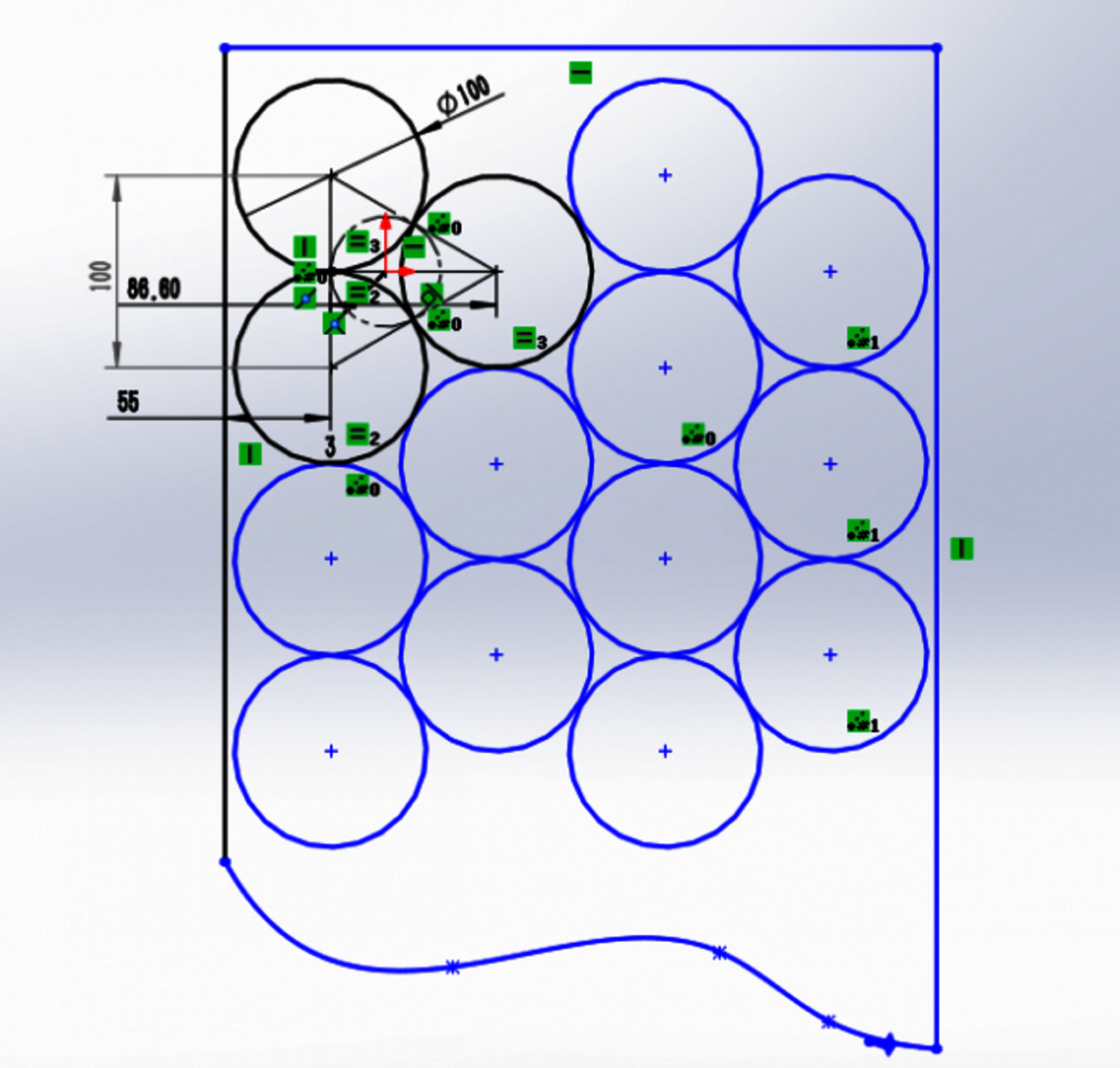

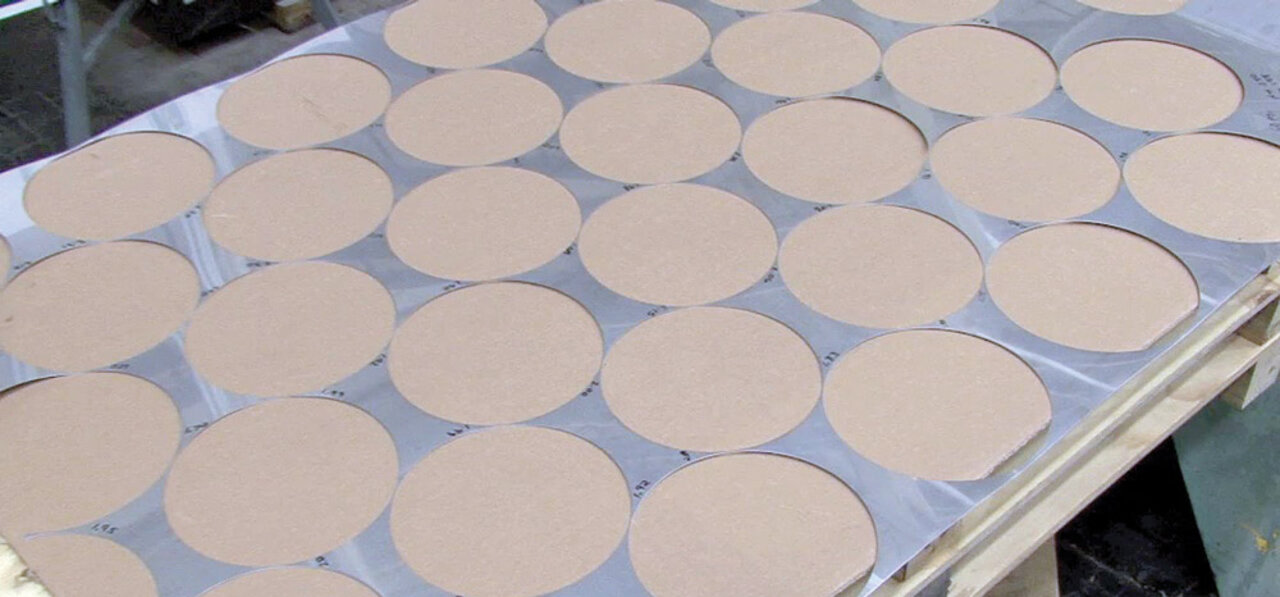

Servo zigzag feeder can minimize the edges and corners material produced in stamping production by means of back and forth zigzag shifting feeding way, to ensure circular with circular mutual cutting blanking, to improve production efficiency.
Introduction of the Zigzag production line
Specification: The zigzag plate production line can do the zigzag pressing directly for the steel, which can save the cutting process and material. Increase the production speed, reach the high working efficient.
Special：Thick-steel-plate (more than 4.5mm) Zigzag automatically pressing unloading production line.
Machine composition：Heavy-duty 2 in 1 straightener/leveler+ Large thick-plate Zigzag NC feeder machine (Must install the loop)
Application range：Stamping processing for motor punching, aluminum wafer, refrigerator compressor, kitchen and small household appliances, lighting products, auto parts, stainless steel products, etc.
Thick-material zigzag round steel production line
Light accessories zigzag production line
Thick-Zigzag plate production line
Light accessories Zigzag feeder machine
Steel plate zigzag feeder production line.
